Brand Name : SAER
Model Number : SR 1800
Certification : CE Certification
Place of Origin : Shanghai of China
MOQ : 1 Set
Price : Negotiation
Payment Terms : T/T
Supply Ability : 1000 Set Per Month
Delivery Time : Within 5 working days after receive your payment
Packaging Details : None fumiation wooden package(Package Size:3400*880*1330 mm)
Color Mode : Dual CMYK
Ink : Dye sublimation ink / pigment ink
Include : One 1.8 m Sublimation Heater with filter Fan
Voltage : 220-240V,50HZ
Net Weight : 308kg
Gross Weight : 446kg
United Printer : Mutoh,Mimaki,Roland and any other piezo printer
Machine packing dimension : 3400*880*1330 mm
Working Method : Cloth inserted or roll to roll
Heat Temperature : 100-280℃
Constant Temperature Heating System 220-240V For Piezo Printers
Heater Description
Product Name | Sublimation heater System | |||||||
Model | SR1800 | |||||||
Working width | 1800MM | |||||||
Blackbody tube working model | Far infrared | |||||||
First Power | 3.8KW | |||||||
Tension | 0 to 1.2KG | |||||||
Working Voltage | 220-240V 50HZ | |||||||
Taking up working method | roll to roll | |||||||
Taking up media diameter | 300mm | |||||||
Machine packing dimension | 3400*880*1330 mm | |||||||
Net Weight | 308KG | |||||||
Gross Weight | 446KG | |||||||
Certification | CE Certificated | |||||||
Package | Non fumigation wooden package | |||||||
Available printer | Mimaki,Mutoh,Roland and any piezo printer | |||||||
Working tempreture | 25 to 250℃ |
Heater Feature
1. Far Infrared Blackbody Tube Radiation.
2. Electro thermal Heating.
3. Intelligent PID Temperature Control.
4. Digital Tension Control.
5. Feeding and Taking up Are synchronous.
6. Vacuum Fan Delivery Is Controllable.
7. Quick Tail Gas Treatment.
8. Roll to roll Work Way.
9. Heating Tube Size 2200mm
Filter Fan Specification
Power | 360W |
Working Voltage | 220~240V 50HZ |
Package Size | 620X565X1100mm |
Weight | 60 Kg |
Input Air temperature | >200 °C |
Out put Air temperature | <25 °C |
Filter Medium | Active Carbon |
Certification | CE Certificated |
Filter Advantage:
1.Exhaust without any smell, good environment need.
2.Normal temperture for exhaust , no dangerouse for hot air out.
3.High Efficiency cold system to make sure the exhaust temperture less then 25 Degree
4.Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases
Applications:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.

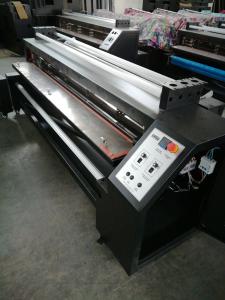

Product detail picture:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier
![]() |
